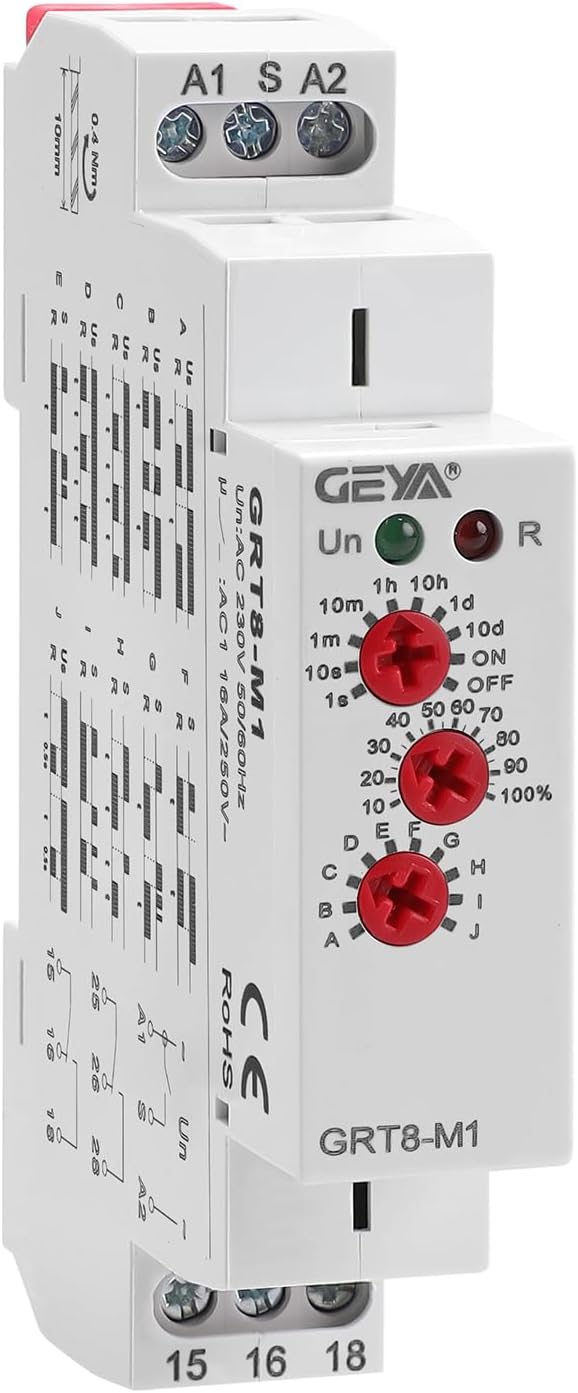

Product Overview
The 16A Multifunction Time Relay with 10 Function Choices AC230V Relay (GRT8-M1,AC230V) responds to household use with reliable characteristics and practical use that hold up. Featuring Gold, Silver, Or Copper Alloy. Notable features include special 10 and 10 functions, contributing to its practical character.
Key Features

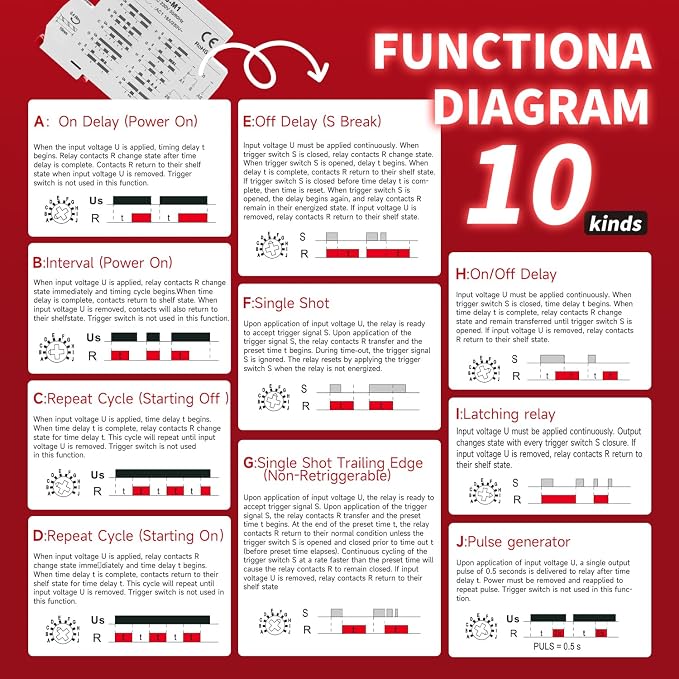

- Special 10 Functions:5 time functions are controlled by the power supply voltage,4 time functions are controlled by the control input,and 1 function of latching relay.

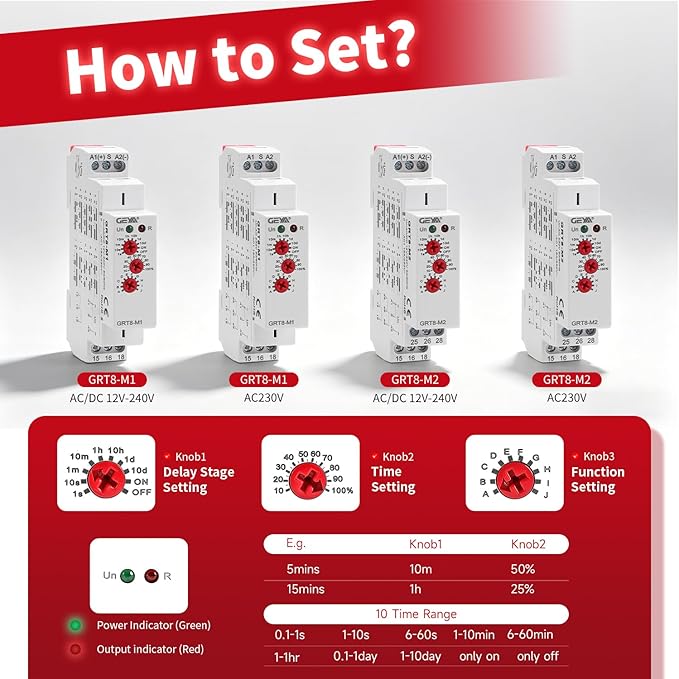

- Instructions:Comfortable and well-arranged function and time-range setting by rotary switches.
- Time scale 0.1s-10days divided into 10 ranges,setting by Potentionmeter.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only on,only off)

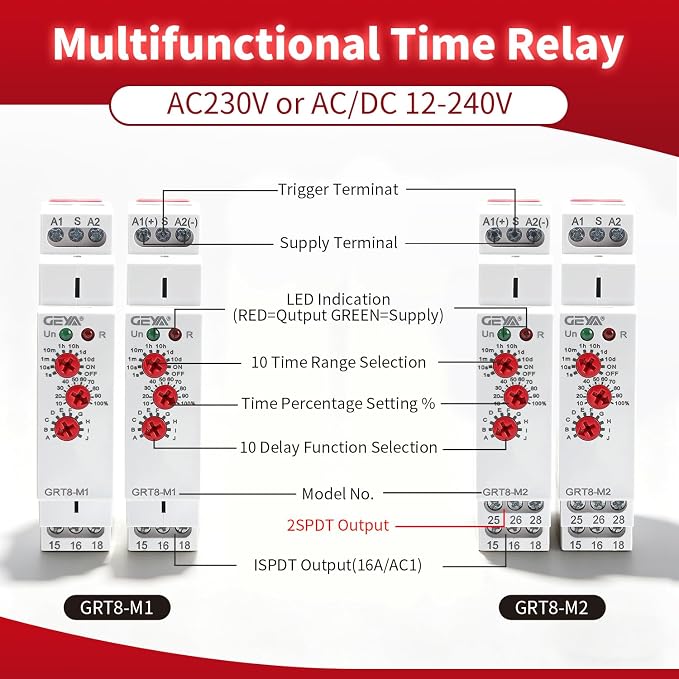

- Relay status is indicated by the LED.Output:16A 1SPDT (GRT8-M1) or 2SPDT (GRT8-M2)

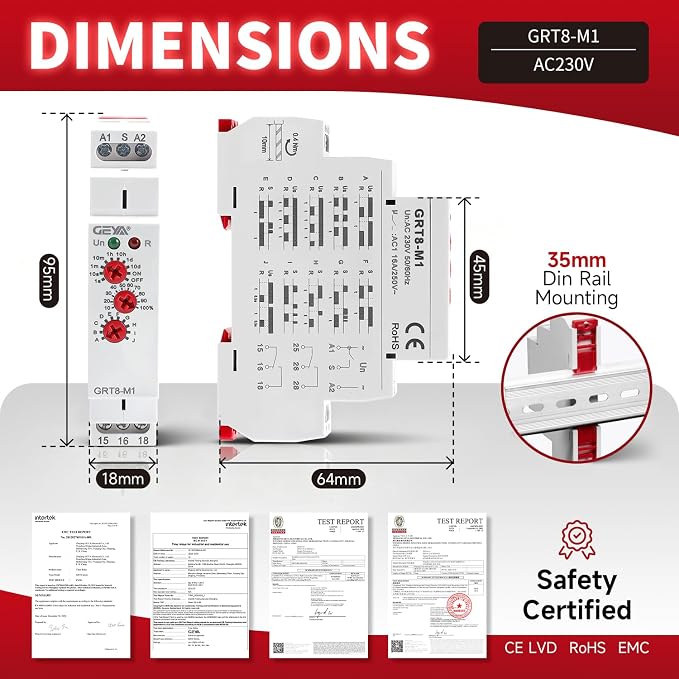

- Product Size:Ultra-small size,only 18mm width,35mm rail mounting.
Why Choose the GAEYAELE 16A Multifunction Time Relay with 10 Function Choices AC230V Relay (GRT8-M1
Choose the 16A Multifunction Time Relay with 10 Function Choices AC230V Relay (GRT8-M1,AC230V) for its versatile approach to electromechanical relays essentials: special 10 delivers everyday convenience in daily use.
Best For
The 16A Multifunction Time Relay with 10 Function Choices AC230V Relay (GRT8-M1,AC230V) is best suited for household use, where its versatile build supports practical use.
Quick Summary
The GAEYAELE 16A Multifunction Time Relay with 10 Function Choices AC230V Relay (GRT8-M1 is a Electromechanical Relays product by GAEYAELE. Connector Type: Screw. Contact Material: Gold, Silver, Or Copper Alloy. Contact Type: Spdt. Current Rating: 16 Amps. Mounting Type: DIN Rail Mount. Price: $37.78.

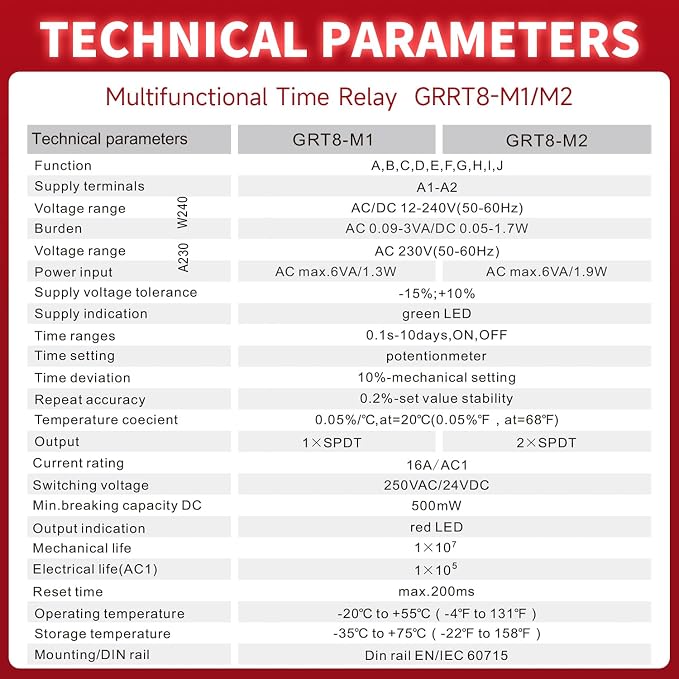

Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Gold, Silver, Or Copper Alloy |
| Contact Type | Spdt |
| Current Rating | 16 Amps |
| Mounting Type | DIN Rail Mount |
