Product Overview

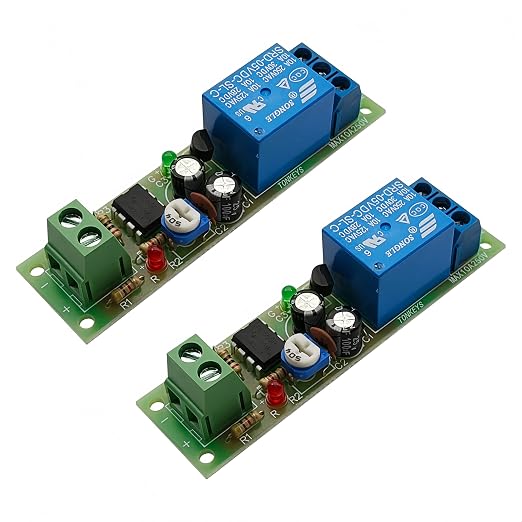

The 2PCS DC 5V NE555 Time-delay Module Timer Switch Turn On Turn Off Relay Module Adjustable 0 to 60 Second reflects adjustable thinking, providing practical use suitable for household use. Constructed using Copper. Notable features include main chip and chip ne555, contributing to its well-made character.
Key Features
- Main Chip: NE555, Operating voltage: 5V DC. Max current after actuation is 80mA, static current is 5mA

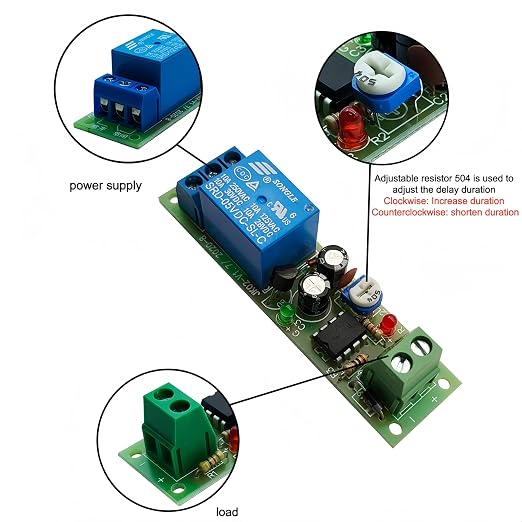

- Change the delay time through an adjustable resistor, the delay time is adjustable (0-60 seconds)

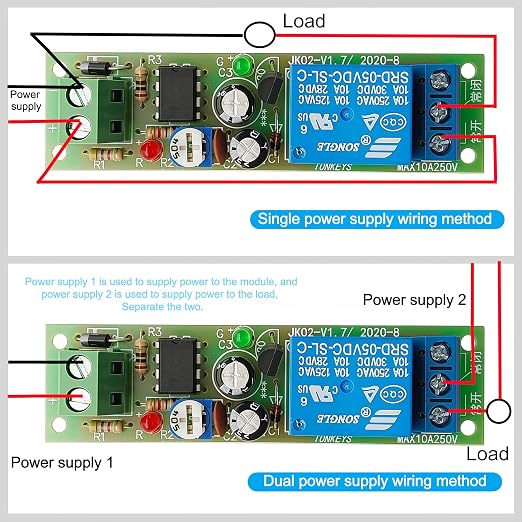

- The relay with normally open and normally close. When connected to the normally closed terminal (NC), it is delay turn on; when connected to the normally open terminal (NO), it is delay turn off
- With status indication, the red LED is light to indicate that the module has been powered on, and the green LED is light to indicate that the relay is in the attraction state

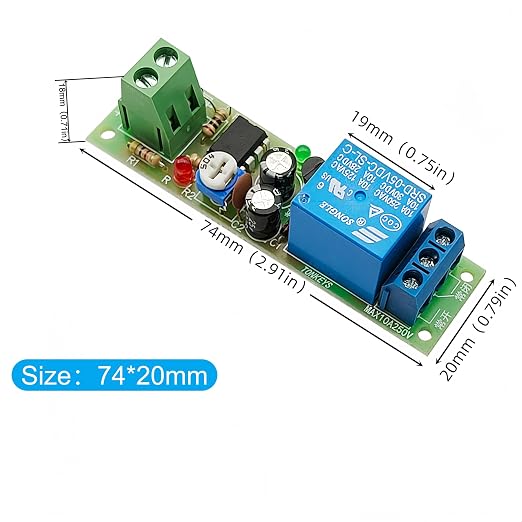

- PCB size is 74*20mm, with mounting hole. The load capacity is 10A 250V AC or 10A 30V DC
Why Choose the Yuuhseel 2PCS DC 5V NE555 Time-delay Module Timer Switch Turn On Turn Off Relay Module Adjustable 0 to 60 Second
The 2PCS DC 5V NE555 Time-delay Module Timer Switch Turn On Turn Off Relay Module Adjustable 0 to 60 Second approaches timer switches from a user-tested perspective, with main chip that produces everyday convenience. A solid choice for users who value substance.
Best For
The 2PCS DC 5V NE555 Time-delay Module Timer Switch Turn On Turn Off Relay Module Adjustable 0 to 60 Second pairs naturally with household use situations, offering practical use when it counts.
Quick Summary
The Yuuhseel 2PCS DC 5V NE555 Time-delay Module Timer Switch Turn On Turn Off Relay Module Adjustable 0 to 60 Second is a Timer Switches product by Yuuhseel. Connector Type: Solder Terminals Or Screw Terminals. Contact Material: Copper. Contact Type: Normally Open. Current Rating: 5 Amps. Mounting Type: Panel Mount. Price: $17.98.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Solder Terminals Or Screw Terminals |
| Contact Material | Copper |
| Contact Type | Normally Open |
| Current Rating | 5 Amps |
| Mounting Type | Panel Mount |
