4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay

4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay

$28.78
Shipping calculated at checkout.
Description

Product Overview

Where everyday needs demands consistency, the 4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display / 5V Micro USB delivers thoughtful design backed by adjustable build. Key specs include connector type: Usb, contact type: Normally Open, current rating: 10 Amps. Notable features include dc 6-30v and 6-30v timer, contributing to its practical character.

Key Features

  • 【DC 6-30V Timer Relay】Multifunction timer relays can be widely used in smart home, industrial control, automatic irrigation, indoor ventilation, protection equipment,etc.

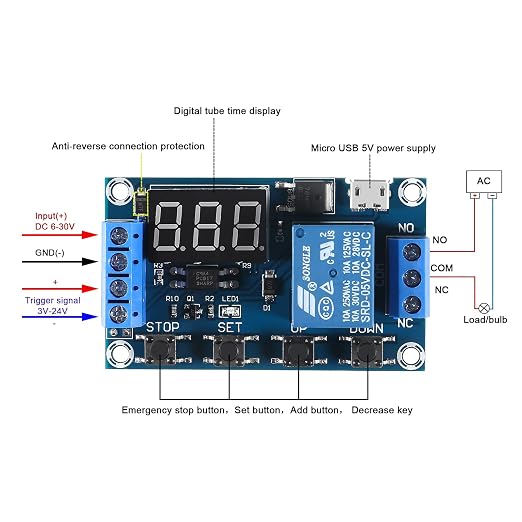

  • 【Timer Relay Parameter】Operating Voltage: DC 6-30V, support micro USB 5V power supply; Operating Current: 50mA; Static Current: 20mA; High level trigger: 3V - 24V. NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. Timing range: 0.1s ~ 999mins (continuously adjustable).
  • 【Parameter Setting】OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.
  • 【Sleep Mode】1. "C-P" Sleep mode: if no operation within 5 minutes, the digital display automatically turns off, the program runs as usual; 2. "O-d" Normal mode: digital display turns on all the time; Press and hold the "STOP" button for two seconds to switch "C-P" and "O-d" state, the current state flashes and then return to the main interface.
  • 【Reverse Protection】Built-in a diode to provide protection against accidental reverse polarity for the circuits, and set a button emergency stop function (STOP button).

Why Choose the Coliao 4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display / 5V Micro USB

The 4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display / 5V Micro USB brings together versatile and well-made qualities, plus dc 6-30v, to deliver long-term value in timers settings.

Best For

The 4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display / 5V Micro USB performs reliably in everyday needs, where its versatile design supports thoughtful design.

Quick Summary

The Coliao 4pcs DC 6-30V Timer Relay Programmable Delay Relay Module Trigger Cycle Delay Timer Switch Turn On/Off Relay Module with LED Display / 5V Micro USB is a Timers product by Coliao. Connector Type: Usb. Contact Type: Normally Open. Current Rating: 10 Amps. Mounting Type: DIN Rail Mount. Brand: Coliao. Price: $28.78.

Product Specifications

Specification Details
Connector Type Usb
Contact Type Normally Open
Current Rating 10 Amps
Mounting Type DIN Rail Mount
Brand Coliao
