Product Overview

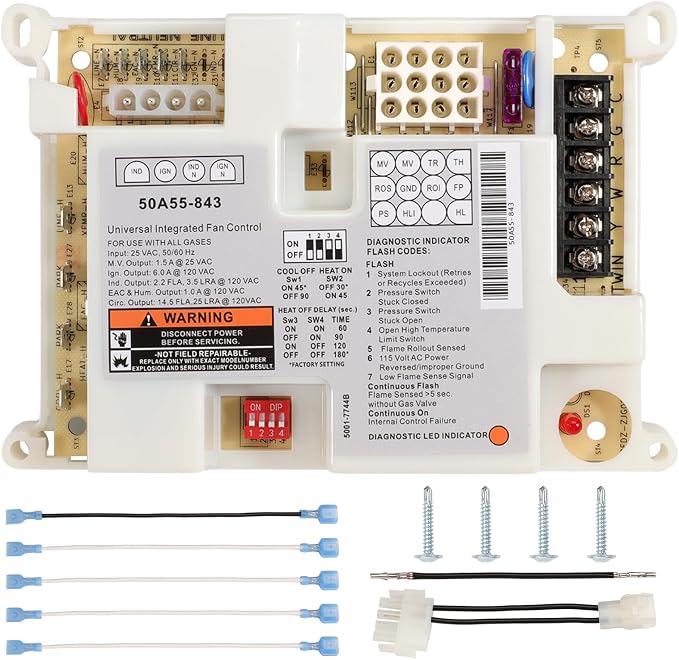

Where daily routines demands consistency, the 50A55-843 Furnace Control Board Suitable for Wh-ite Ro-dge-rsFurnace Systems Precise Ignition Timing,Replace 50A50-241 50A50-405 50A55-288 50A55-486 delivers reliable performance backed by thoughtfully designed build. Notable features include fitment 50a55-843 and 50a55-843 integrated, contributing to its versatile character.
Key Features
- [Fitment] : 50A55-843 Integrated Furnace control board compatible with W-hite-Ro-dgers.The replacement product models include the 50A55 and 50A50 series, 50A50-241, 50A50-405, 50A50-298, 50A55-486, 50A55-288, 50A55-571, 50A50-298, 50A50-474, 50A50-473, 50A55-474, 50A55-286, 50A50-471, 50A50-438, 50A50-110, 50A50-112, 50A50-296, 50A50-207, 50A50-406, 50A55-743 etc, Universal Control Board
- [Specification] : 50A55-843,① Input Voltage: 25 VAC② Input Frequency: 50/60 Hz③ Input Current: 0.45 A @ 25 VAC④ Valve Relay Load: 1.5 A @ 25 VAC 50/60 Hz, 0.6 pf⑤ Ignitor Relay Load: 6.0 A @ 120 VAC 50/60 Hz (resistive)⑥ Inducer Relay Load: 2.2 FLA – 3.5 LRA @ 120 VAC⑦ Circulator Relay Load: 14.5 FLA – 25.0 LRA @ 120 VAC
- [Core Function] : 1* 50A55-843 Integrated furnace control board,The 50A55-843 Furnace Ignition Control Module As the "brain" of the gas furnace, it precisely controls the ignition timing to ensure safe startup and shutdown of the burner, and manages the operation of the blower, inducer, humidifier, and electronic air purifier. It is a universal microprocessor ignition control module that can monitor thermostat signals, control ignitor preheating, open gas valves, detect flames, and automatically shut off the gas in case of a fault
- [Simple Installation] : ① Photo first: Before disconnecting anything, snap clear photos of every wire's position and color. Photos don't forget.② Match and connect: Follow your photos to connect wires to the new module. ③ Test operation: Power up, check LED status, and call for heat to verify the ignition sequence. If it doesn't work initially—some models require jumping ROS and ROI pins
- [Warmly note] : 1 year maintenance period, If you have any problem after receiving the goods, please tell us, we will provide you with the most warming solution. Your satisfaction is our motivation
Why Choose the AutomotiveReplacement 50A55-843 Furnace Control Board Suitable for Wh-ite Ro-dge-rsFurnace Systems Precise Ignition Timing
Picking the 50A55-843 Furnace Control Board Suitable for Wh-ite Ro-dge-rsFurnace Systems Precise Ignition Timing,Replace 50A50-241 50A50-405 50A55-288 50A55-486 means choosing value-driven engineering with thoughtful design. The fitment 50a55-843 reinforces its position in the circuit boards space.
Best For
The 50A55-843 Furnace Control Board Suitable for Wh-ite Ro-dge-rsFurnace Systems Precise Ignition Timing,Replace 50A50-241 50A50-405 50A55-288 50A55-486 performs reliably in daily routines, where its value-driven design supports reliable performance.
Quick Summary
The AutomotiveReplacement 50A55-843 Furnace Control Board Suitable for Wh-ite Ro-dge-rsFurnace Systems Precise Ignition Timing is a Circuit Boards product by AutomotiveReplacement. Price: $64.78.
