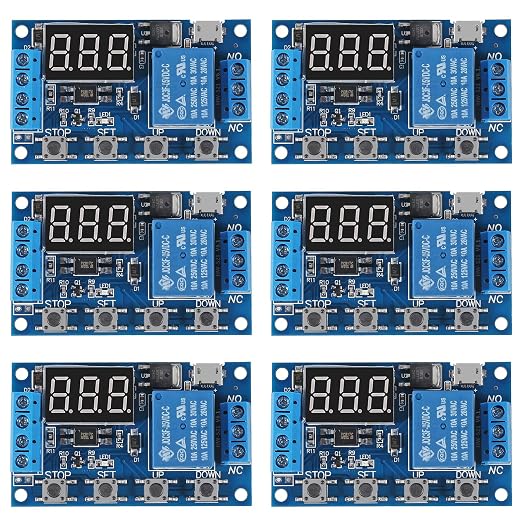

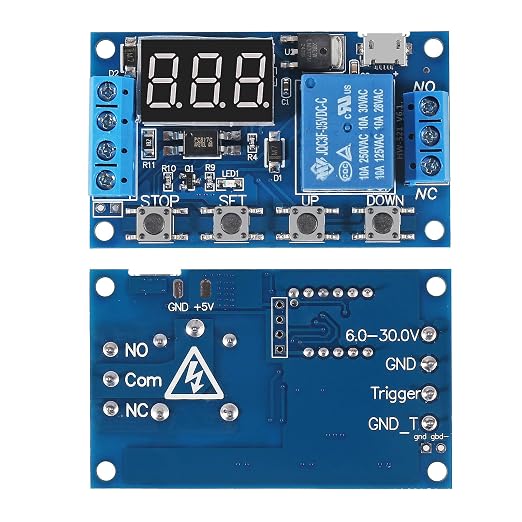

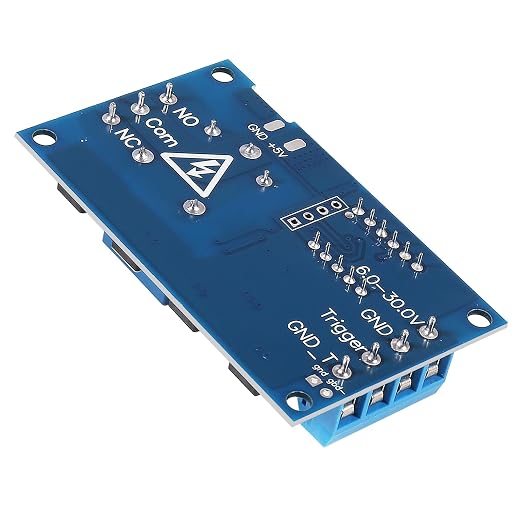

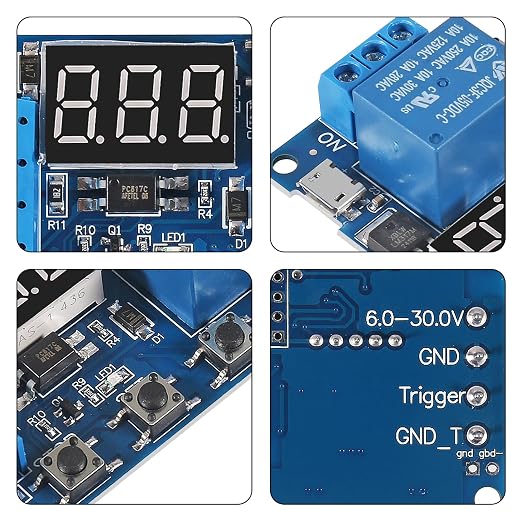

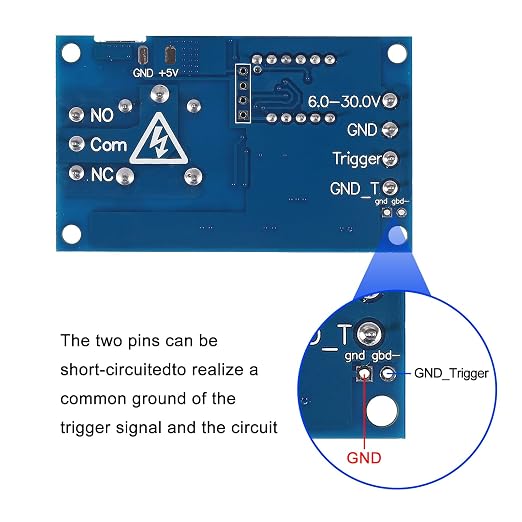

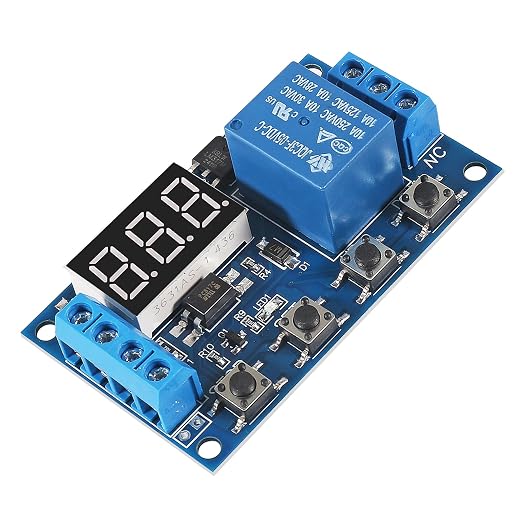

6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer by JUZITAO

6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer

$28.78
Skip to product information
6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer by JUZITAO
1/8
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer by JUZITAO
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 2
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 3
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 4
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 5
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 6
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 7
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 8
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer by JUZITAO
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 2
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 3
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 4
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 5
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 6
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 7
  • 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer - Image 8
6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer

6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer

$28.78
Shipping calculated at checkout.
Description

Product Overview

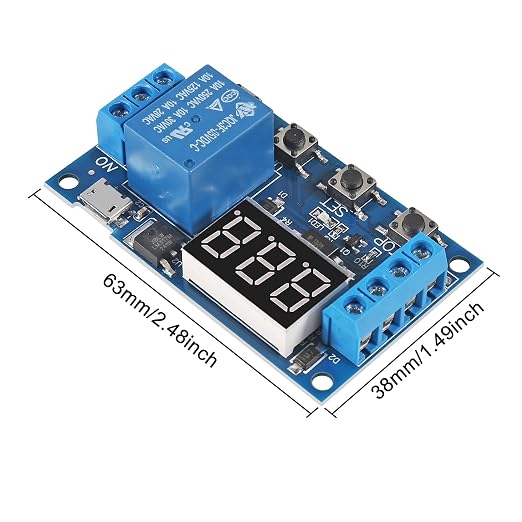

Built for daily routines from the ground up, the 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LCD Display / 5V Micro USB, Smart Home Controller combines adjustable quality with reliable performance. Made with Metal, Plastic, measuring 2.5"D x 1.6"W x 0.8"H, weighing 9.07 g, available in Blue. Notable features include timer relay and relay parameters, contributing to its versatile character.

Key Features

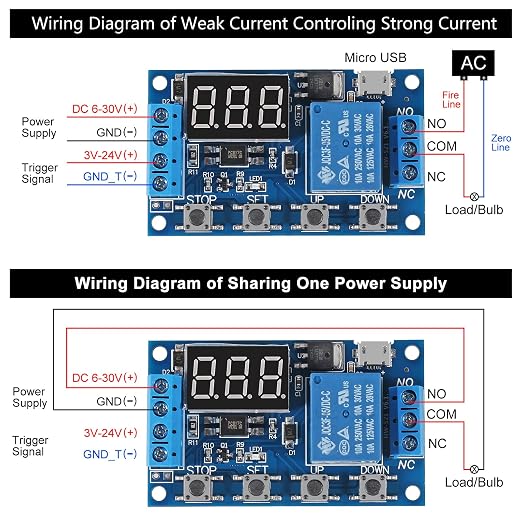

  • 【Timer Relay Parameters】Operating voltage: DC 6V - 30V, support micro USB 5V power supply. High level trigger: 3V - 24V. NO(Normally open) maximum load < AC 250V/10A, < DC 30V/10A. operating temperature: -40℃-85℃(-40℉-185℉).
  • 【Timing Range】The time delay relay supports 0.1 seconds (min) - 999 minutes (max) continuously adjustable. The timing range is selected by short pressing the STOP button after setting the parameter values in the mode selection interface.
  • 【DC 6-30V Timer Relay】Multifunction timer relays can be widely used in smart home, industrial control, automatic irrigation, indoor ventilation, protection equipment,etc.
  • 【Parameter Setting】OP(conduction time) / CL(off time) / LOP(circuit times) can be set individually, and the parameters are mutually independent. All parameters are permanently saved once set. The functions and parameters can be reviewed or changed at a later time.
  • 【Programmable Delay Timer Features】Built-in a diode to provide protection against accidental reverse polarity for the circuits.If no operation within 5 minutes, the digital tube of the relay board will turn off automatically. Pressing any button can wake it up.

Why Choose the JUZITAO 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LCD Display / 5V Micro USB

Choose the 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LCD Display / 5V Micro USB, Smart Home Controller when you need thoughtful design backed by value-driven construction. The timer relay adds further value, making it suitable for varied timers needs.

Best For

Buyers shopping for daily routines will find the 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LCD Display / 5V Micro USB, Smart Home Controller a strong match thanks to reliable performance.

Quick Summary

The JUZITAO 6pcs DC 6-30V Timer Relay Programmable Delay Relay Module Cycle Timer with LCD Display / 5V Micro USB is a Timers product by JUZITAO. Color: Blue. Brand: JUZITAO. Material: Metal, Plastic. Product Dimensions: 2.5"D x 1.6"W x 0.8"H. Item Weight: 9.07 g. Price: $28.78.

Product Specifications

Specification Details
Color Blue
Brand JUZITAO
Material Metal, Plastic
Product Dimensions 2.5"D x 1.6"W x 0.8"H
Item Weight 9.07 g
