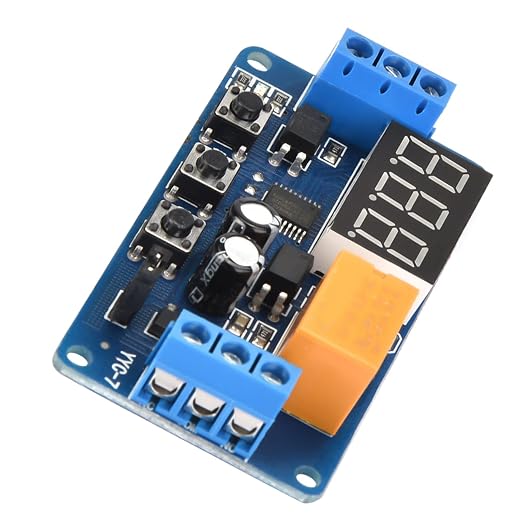

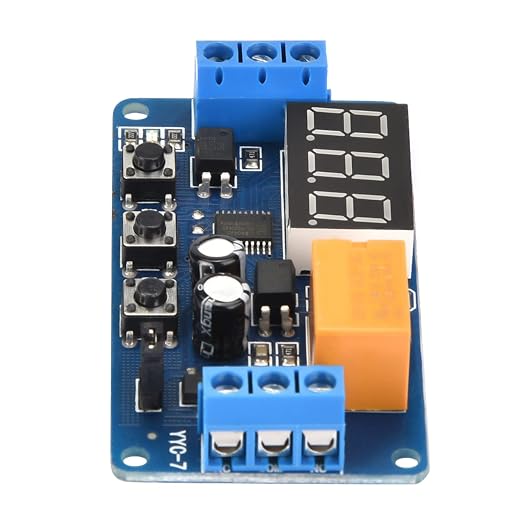

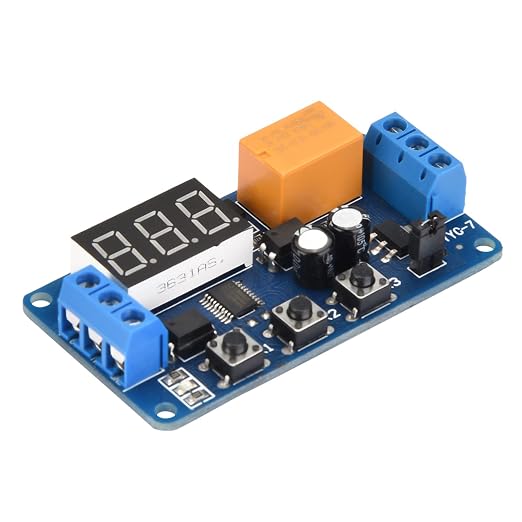

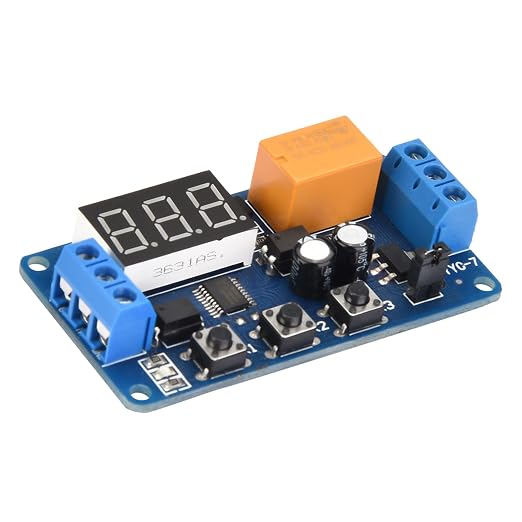

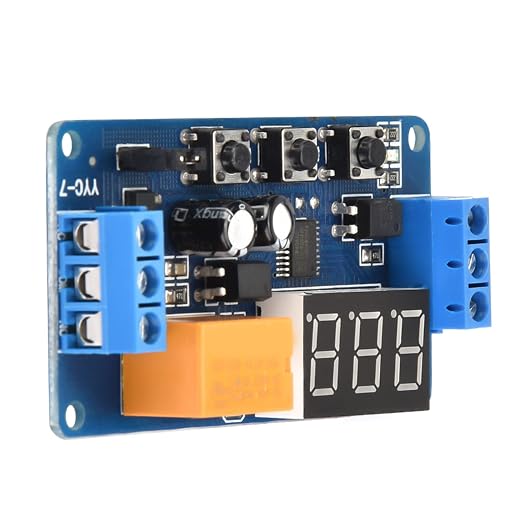

Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch

Product Overview

Combining portable design and practical use, the Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch for Motors, Pumps, LEDs serves household use effectively. Built with See Details. Notable features include precise timing and timing control, contributing to its time-tested character.

Key Features

• Precise Timing Control: This timer relay module offers highly adjustable timing from 0.1 seconds to minutes with intuitive button-based setup—K2 shifts digit position and K3 adjusts values or decimal point location to toggle between seconds, tenths of seconds, and minutes; blue LED status clearly indicates energized/de-energized time setting during P-2 and P-3 mode configuration.
• Multiple Operating Modes: Supports four distinct logic modes—P-1 (one-Take/Attempt delay), P-2 (delay-then-energize), P-3 (continuous T1/T2 cycling), and P-4 (signal-hold + off-delay)—with A/B/C sub-options per mode; ideal for diverse automation tasks like motor start-stop sequences, lighting schedules, or pump duty cycles without external controllers.
• Wide Voltage Compatibility: Operates reliably across DC 3V–7V input directly with common 3.7V lithium batteries, 5V power banks, and 6V/7.4V battery packs; jumper-selectable voltage ranges (3–5.5V or 3.8–7V) ensure Durability-Optimized with varied power sources in portable or embedded applications.
• Robust Industrial Output: Delivers up to DC 30V/3A or AC 220V/3A switching acity with optocoupler-isolated output for strong noise immunity; industrial-grade PCB preserves all settings after power loss, enabling consistent operation in workshops, greenhouses, RVs, and DIY electronics projects.

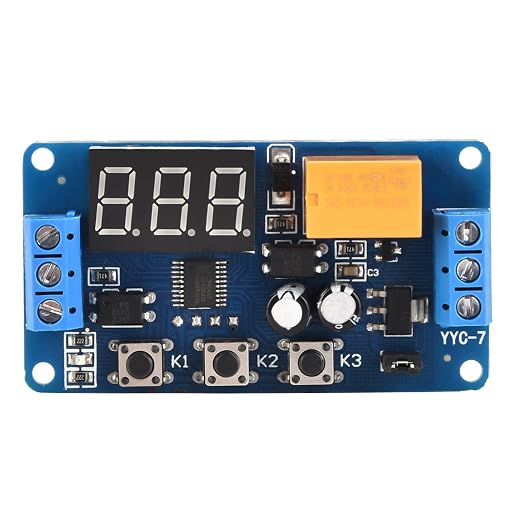

• Compact & Plug-and-Play Ready: Measuring just 64.2 × 34.8 × 15 mm and weighing only 22g, this module integrates easily into tight spaces; includes clear on-board labeling, tactile buttons (K1/K2/K3), and standard breadboard and DIN-rail mounting setups—no soldering or additional drivers needed for immediate use.

Why Choose the Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch for Motors

For long-term air conditioning use, the Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch for Motors, Pumps, LEDs offers reliable build, precise timing, and everyday convenience — a combination that pays off over time.

Best For

The Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch for Motors is best suited for: diverse automation tasks like motor start-stop sequences.

Quick Summary

The Adjustable Cycle Timer Relay Module 3V-7V DC Time Delay Switch for Motors is a Air Conditioning product by . Connector Type: Usb_2_0. Contact Material: See Details. Contact Type: Metal. Current Rating: 2 Amps. Mounting Type: Wall Mount. Price: $21.4.
