Product Overview

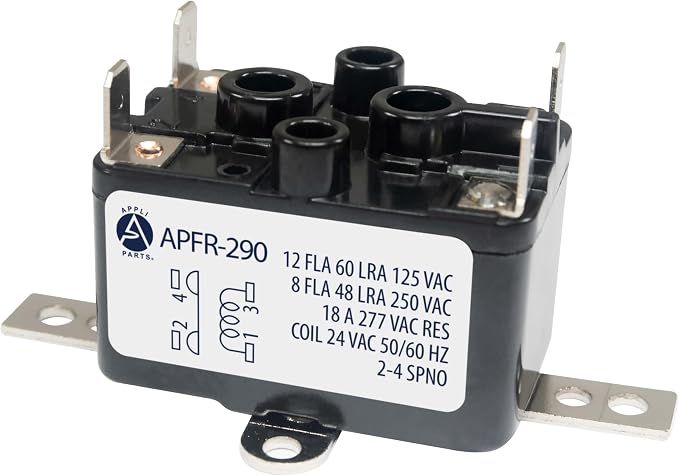

The Appli Parts APFR-290 90-290, 24 VAC Coil, Heavy Duty Switching Fan Relay, SPST Normally Open AC and heating Furnace blower relay Universal fit multi position bracket reflects thoughtfully designed thinking, providing satisfying experience suitable for common scenarios. Constructed using Silver. Notable features include product feature and feature use, contributing to its versatile character.
Key Features
- Product Feature: Use: Designed for use in Heating, Air Conditioning, Refrigeration and Ventilation Applications. Universal design for other application that meet electrical specs

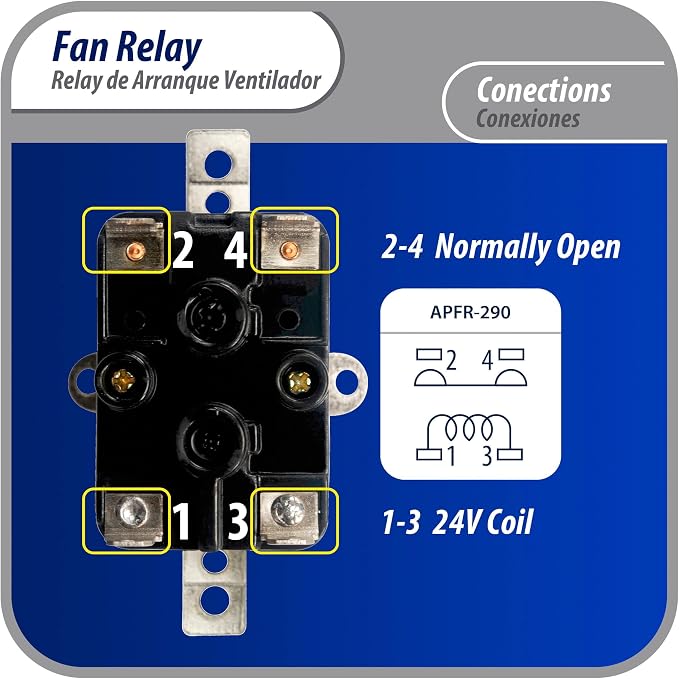

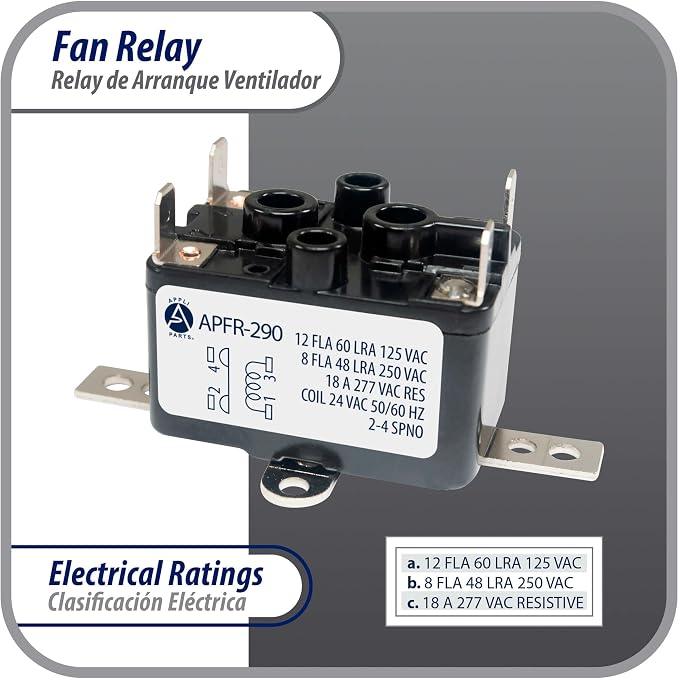

- Product Feature: Specs: 24V AC Coil, Terminals 2-4 Power Normally Opened, 1-3 Coil for input Signal, 12 FLA 60 LRA 125 VAC, 8 FLA 48 LRA 250 VAC, 18A 277 VAC Resistive, 50/60 Hz.
- Product Feature: Universal: This Switching relay also known as fan relay hvac will work with any unit where the electrical requirements are met by the products specifications

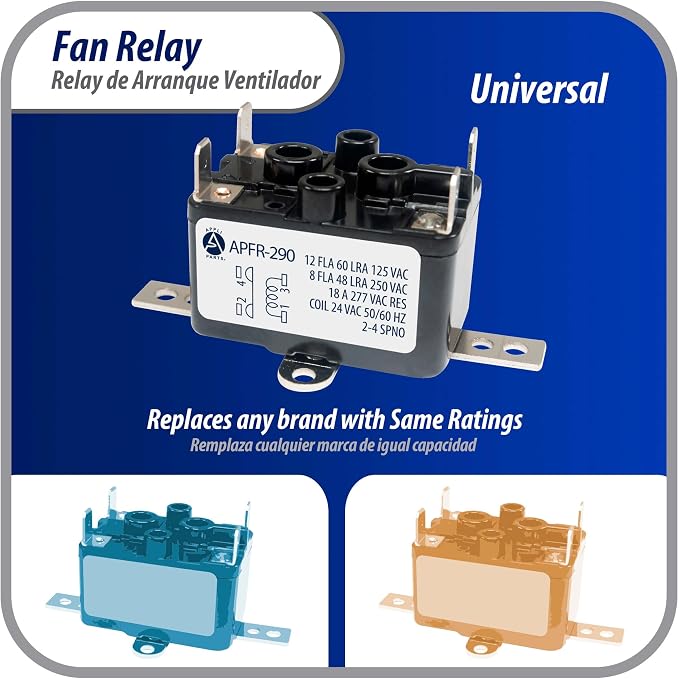

- Product Feature: Replaces: Direct replacement for 44290, Jard 92290, Jard JFR290, Mars 90290, Packard PR290Q, RBM 90-290Q, White-Rodgers 90-290, Zettler 9401-1A-24A, Zettler AZ 9401-1A-24A, Smart Electric SE90290
- Product Feature: Confirm that the dimensions and other attributes of the product closely match those of the original item being replaced
Why Choose the Appli Parts APFR-290 90-290
The Appli Parts APFR-290 90-290, 24 VAC Coil, Heavy Duty Switching Fan Relay, SPST Normally Open AC and heating Furnace blower relay Universal fit multi position bracket approaches relays from a value-driven perspective, with product feature that produces practical use. A solid choice for users who value substance.
Best For
The Appli Parts APFR-290 90-290 is best suited for: use in Heating.
Quick Summary
The Appli Parts APFR-290 90-290 is a Relays product by APPLIPARTS. Connector Type: Screw. Contact Material: Silver. Contact Type: Spst. Current Rating: 18 Amps. Mounting Type: DIN Rail Mount. Price: $39.6.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Spst |
| Current Rating | 18 Amps |
| Mounting Type | DIN Rail Mount |
