DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module

Product Overview

The DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display achieves practical use through adjustable engineering, making it dependable for household use. measuring 4.33"D x 3.35"W x 1.45"H, available in See Picture. Notable features include industrial lcd and lcd display, contributing to its practical character.

Key Features

• Industrial LCD display, 4 keys for easy operation, with reset function.
• High performance microcontroller for high stability, high reliability and low power consumption.
• Reverse power protection function, avoiding surge current shock.
• Each group of relay has common, normally open and normally closed contacts, 4 sets of conversion.
• Four-channel time relay, adjustable timing range: 0.1 second to 9999 minutes(countdown), the total number of Loops is adjustable from 0 to 9999(zero for the infinite loop).
• Effective signal input types of 4 channels can be set to high level and low level, rising edge and falling edge, etc. and can connect with external switch, PNP sensor and NPN sensor. The high level signal threshold value is adjustable from 0.1V to 40.0V.
• Four channels of effective signal can be set to control four channels of time relay trigger to run, high level to maintain running, trigger reset and restart etc.

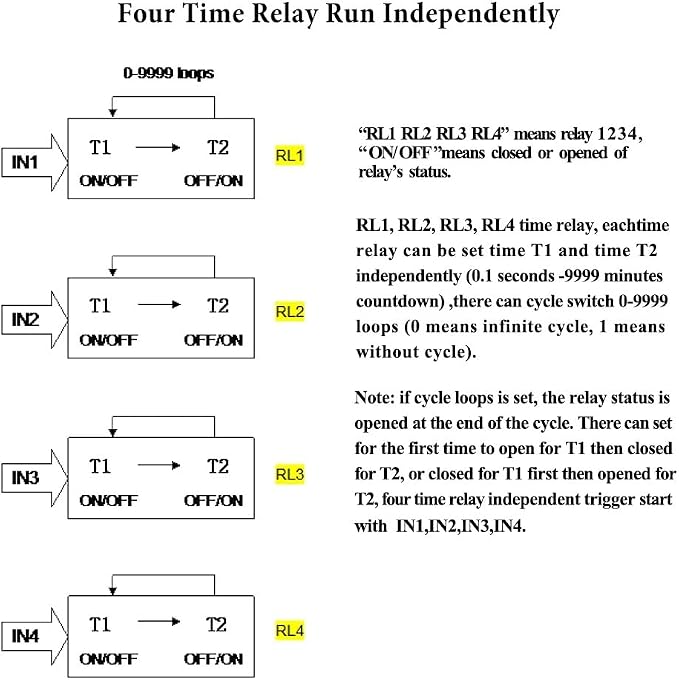

• This controller is a 4-channel time relay; each channel of relay can run independently and it also can run in turn. It can be controlled by detecting four channels of input voltage signal to control four loads on/off independently or in turn, such as controlling four solenoid valves to work independently or work in turn, controlling four input signal to delay on/off, etc.

Why Choose the DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display

Few timers products demonstrate the versatile thinking and industrial lcd that the DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display shows — both lead to everyday convenience.

Best For

The DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display fits household use scenarios well, providing practical use and versatile reliability.

Quick Summary

The DC 6-40V 4-Channel Digital Time Relay Timer Controller Delay Switch Module Independent Timing Cycle LCD Display is a Timers product by . Color: See Picture. Brand: GODIYMODULES. Product Dimensions: 4.33"D x 3.35"W x 1.45"H. Number of settings: 8. Price: $53.98.

Product Specifications
