Product Overview

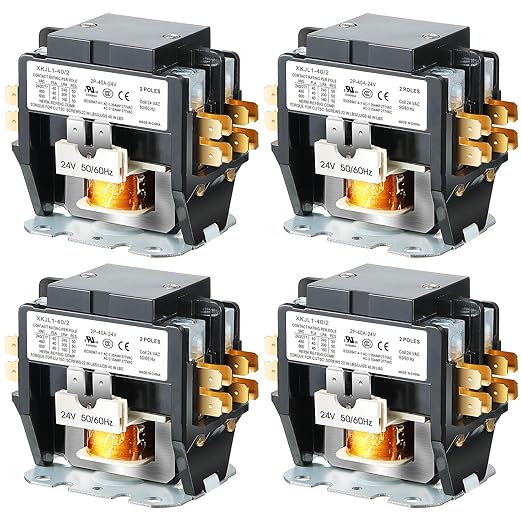

The Dreyoo 4 Pcs 24V Coil 40A 2 Pole Air Conditioner Contactor, UL Certified HVAC Motor Contactor, Air Conditioner Replacement Relay, Compatible with C230b, Heat Pump, Refrigeration Systems prioritizes reliable performance, achieved through value-driven construction for daily routines. Engineered using Silver. Notable features include reliable performance and performance engineered, contributing to its user-tested character.
Key Features
- Reliable Performance:Engineered with 24V coil 2 pole technology, the Dreyoo Air Conditioner Contactor delivers 40A Full Load Amperage (FLA) and 50A Resistive Load (RES) capacity, meeting UL508 standards. The hermetically sealed coil encapsulation prevents moisture ingress, while silver oxide contacts ensure <5mΩ resistance for minimal voltage drop. Compatible with split phase 24-48VAC systems (50/60Hz) and rated for 600VAC/10HP motor loads.
- Industrial Workmanship Durability: Featuring HVAC contactor optimized design with dust/water resistance and vibration proof terminals. Coils wrapped in Class B insulation (130°C thermal limit) pass 100,000+ operations at 6x/hour cycling. Tested to withstand -40°F~+221°F (-40°C~+105°C) extremes and 85% humidity ideal for rooftop AC units and industrial refrigeration.
- Compatibility: Compatible with Mars 17421 and Cutler Hammer C25BNB240T. Includes dual rated copper/aluminum lugs (M4-M6 screws) and 1/4" quick connect terminals. Certified for HVACR systems, commercial elevators, and food processing equipment
- Wide Applications: Deploys in hospital chillers, data center CRAC units, supermarket freezer racks (-30°F), and agricultural irrigation pumps. Meets motor protection requirements with built in arc chutes and overload reset capability. 0.15s response time ensures precise control of 3 phase compressors and condenser fans.
- What You Will Get: Package contains 1x contactor 24v coil 2 pole, 2x DIN rail mounts, 6x stainless steel M5 binding screws, and compliant wiring schematics. High quality home and industrial facility should be available to everyone, If can't find the model you are looking for, contact us for assistance with your request
Why Choose the Dreyoo 4 Pcs 24V Coil 40A 2 Pole Air Conditioner Contactor
For buyers prioritizing thoughtful design, the Dreyoo 4 Pcs 24V Coil 40A 2 Pole Air Conditioner Contactor, UL Certified HVAC Motor Contactor, Air Conditioner Replacement Relay, Compatible with C230b, Heat Pump, Refrigeration Systems offers quality construction paired with reliable performance. Few motor contactors products combine these elements as effectively.
Best For
The Dreyoo 4 Pcs 24V Coil 40A 2 Pole Air Conditioner Contactor is best suited for: rooftop AC units and industrial refrigeration.
Quick Summary
The Dreyoo 4 Pcs 24V Coil 40A 2 Pole Air Conditioner Contactor is a Motor Contactors product by Dreyoo. Connector Type: Quick Connect. Contact Material: Silver. Contact Type: Normally Open. Current Rating: 40 Amps. Mounting Type: DIN Rail Mount. Price: $85.66.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Quick Connect |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Current Rating | 40 Amps |
| Mounting Type | DIN Rail Mount |
