Name: DROK Delay Relay Module, DC 6-30V Timer Relay 12V 24V 0.01s-9999min 50mA
Brand: DROK
SKU: SPH-B07VLXR7Z1
Price: 24.28 USD
Availability: InStock

Product Overview

Designed thoughtfully for everyday needs, the DROK Delay Relay Module, DC 6-30V Timer Relay 12V 24V 0.01s-9999min 50mA Digital Timer Cycle Delay Switch Module AC 220V Power On-Off Controller with LCD Display Switch Button Case pairs adjustable build with consistent thoughtful design. Built with Silver Alloy. Notable features include specification --- and --- working, contributing to its time-tested character.

Key Features

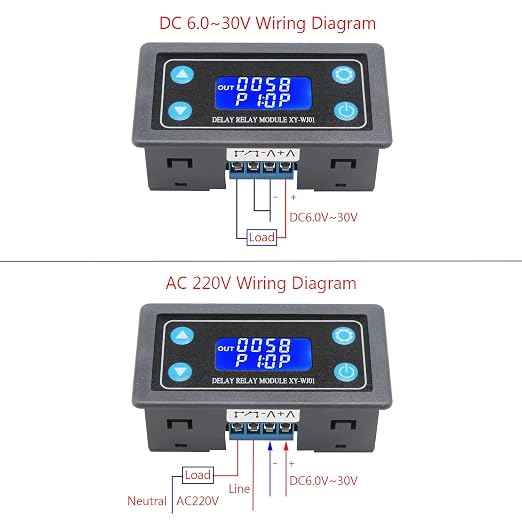

SPECIFICATION --- working voltage DC 6-30V; timing range 0.01s-9999mins continuously adjustable.

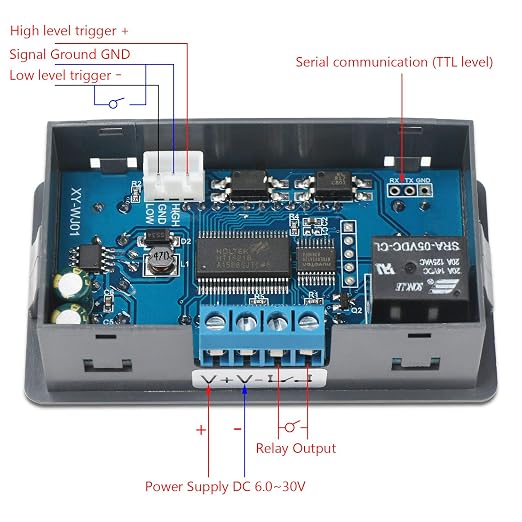

TRIGGER --- support high level support, low level trigger, button trigger control, switching value control, available for most applications.
INDEPENDENT PARAMETER --- able to set different OP, CL, LOP parameters which are independent and saved separately; support viewing currently set parameters without affecting system operation.

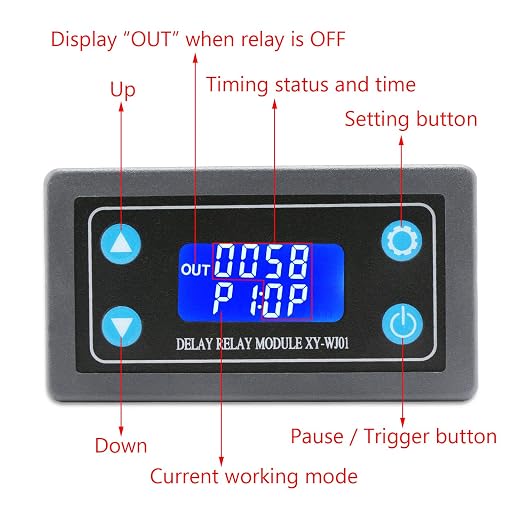

OTHER FEATURES --- clear LCD display; support UART data uploading and parameter setting; with pause button, support one-button pause; with automatically sleep mode; with input reverse connection protection; with power-off auto storage function.
NOTE --- no trigger cable or connector included, need to be purchased separately.

Why Choose the DROK Delay Relay Module

Consistently chosen by relay control module buyers, the DROK Delay Relay Module, DC 6-30V Timer Relay 12V 24V 0.01s-9999min 50mA Digital Timer Cycle Delay Switch Module AC 220V Power On-Off Controller with LCD Display Switch Button Case delivers reliable construction alongside specification --- for reliable long-term value.

Best For

Geared toward everyday needs, the DROK Delay Relay Module, DC 6-30V Timer Relay 12V 24V 0.01s-9999min 50mA Digital Timer Cycle Delay Switch Module AC 220V Power On-Off Controller with LCD Display Switch Button Case brings reliable build quality and consistent thoughtful design.

Quick Summary

The DROK Delay Relay Module is a Relay Control Module product by DROK. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: Normally Open. Current Rating: 10 Amps. Mounting Type: Surface Mount. Price: $24.28.
