Product Overview
Built with adjustable attention to detail, the Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine provides long-term value for gift giving. Engineered using Plastic, measuring 0.98"D x 1.54"W x 0.98"H, available in Black. Notable features include working voltage and dc 6v-30v, contributing to its thoughtfully designed character.
Key Features
- The working voltage is DC 6V-30V, with MOS voltage output, the output voltage is equal to the supply voltage.

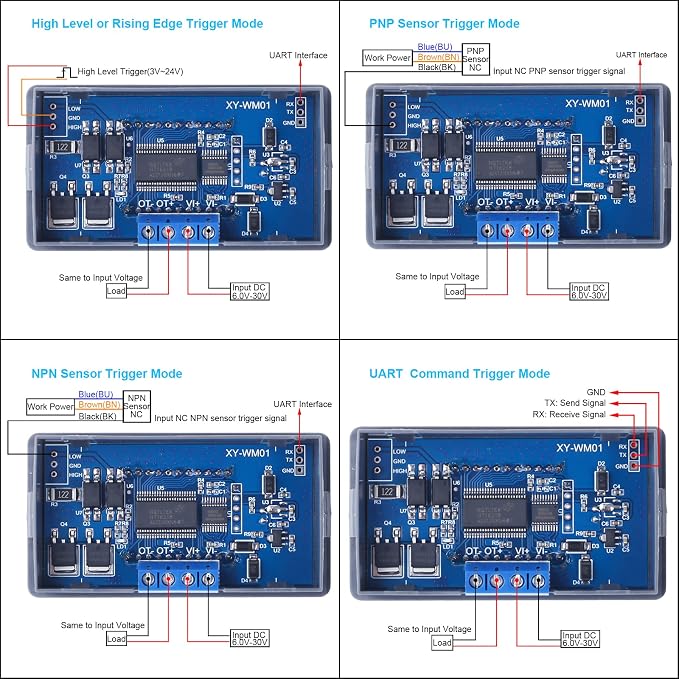

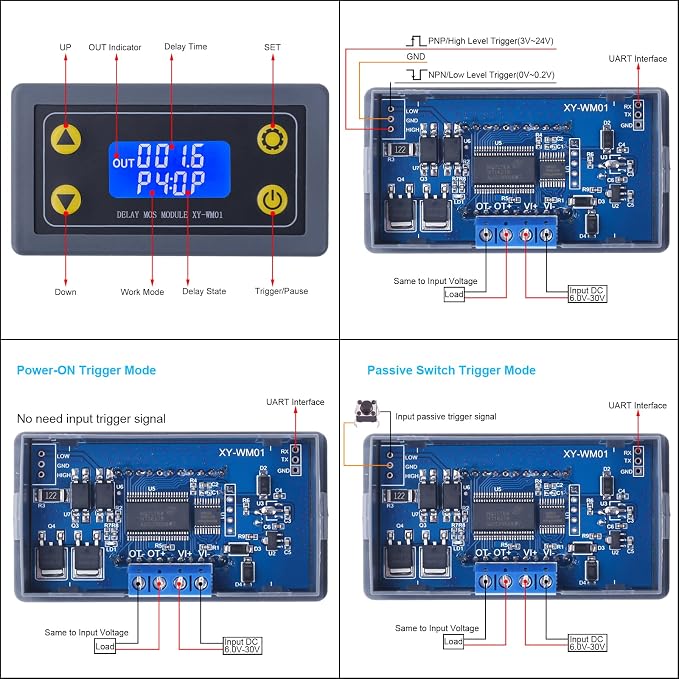

- high level trigger (3.0V~24V), low level trigger (0.0V~0.2V), switch control, NPN, PNP sensor.
- Minimum 0.01 seconds, maximum 9999 minutes, continuously adjustable. Equipped with LCD high-definition display, it can be able to set OP, CL, LOP parameters, and they are independent of each other and saved separately. Support UART data upload and parameter setting.
- Built-in one-key emergency stop function, with reverse connection protection and optocoupler isolation. All parameters are automatically saved after power failure.
- After power on, if there is no operation for 5 minutes, the display will automatically turn off, press any key to wake up.
Why Choose the Icstation-IS Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine
What makes the Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine compelling is the alignment between well-made build, working voltage, and the reliable performance they enable.
Best For
Geared toward gift giving, the Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine brings well-made build quality and consistent long-term value.
Quick Summary

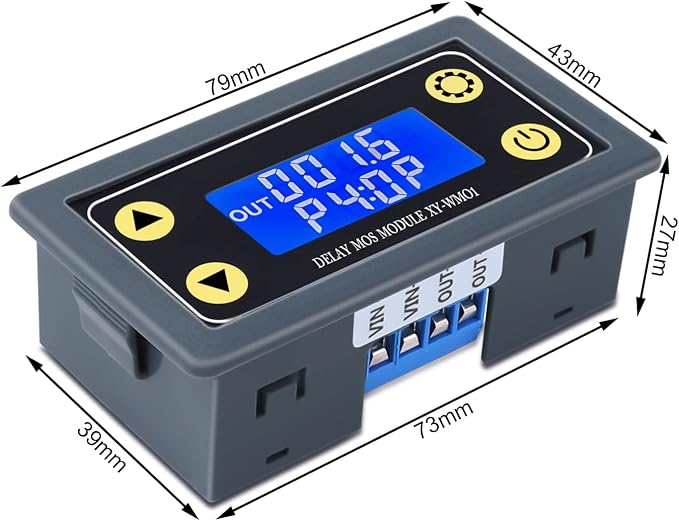

The Icstation-IS Icstation 12V Timer Relay with MOS Voltage Output Cycle Timer LCD Display 10A Programmable Relay Switch Module 0.01s-9999mins ON-Off Control for Light Water Pump Engine is a Timers product by Icstation-IS. Color: Black. Brand: IS. Material: Plastic. Product Dimensions: 0.98"D x 1.54"W x 0.98"H. Number of settings: 5. Price: $25.18.
Product Specifications
| Specification | Details |
|---|---|
| Color | Black |
| Brand | IS |
| Material | Plastic |
| Product Dimensions | 0.98"D x 1.54"W x 0.98"H |
| Number of settings | 5 |
