LCD Digital Display Relay, Dual Time Control Delayer

Product Overview

The LCD Digital Display Relay, Dual Time Control Delayer With Plug-in Terminal Socket, 14-Pin 12 VDC 4PDT Delay Relay (H3Y-4) responds to household use with adjustable characteristics and practical use that hold up. Constructed using Silver. Notable features include high-quality material and material made, contributing to its practical character.

Key Features

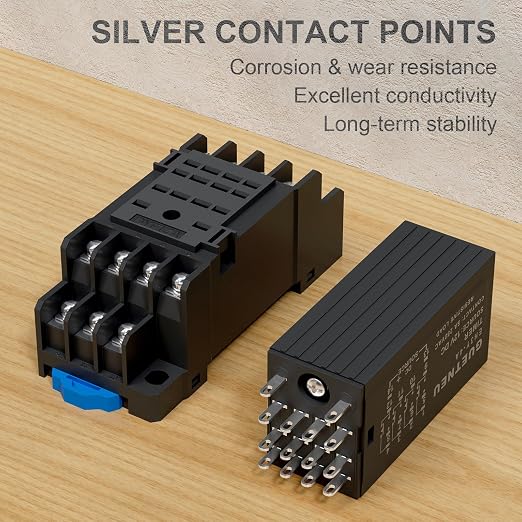

• High-quality Material: Made from premium ABS, it offers excellent electrical insulation, strong durability, and a fire resistance rating of V-2, ensuring safety against flames; The contact pins are made of silver alloy, ensuring strong conductivity
• Flexible & Independent Settings: Users can choose delay mode with “+” and “-” buttons (long press for 3 s, then press “-” ), adjust delay time (press “+” to increase, “-” to decrease; in cyclic mode, long press “-” for 3 s to set T2, adjustable from 0.1 s to 990 h), and select time units (long press “+” for 3 s, then press “+”; in cyclic mode, press “-”); Settings are saved after 8 s of inactivity
• 5 Delay Modes Available: Users can select from the following options: N1 Power-On Delay, N2 Delayed Release, T1T2 Cyclic Delay (triggered on the falling edge), T1T2N2 Cyclic Delay (triggered on both edges), and T1T2N1 Single Cycle Delay

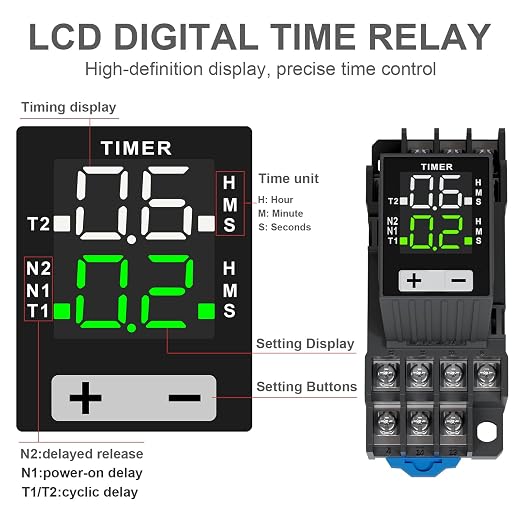

• LCD Dual Time Display: This product features a high-brightness LCD screen for real-time timing, offering clear and accurate readings; The dual time display intuitively shows 2 different time settings, making monitoring and adjustment convenient
• Wide Application Range: Widely used in power systems, home appliance control, and traffic management, etc.; It provides timing control for watering systems, washing machines, and air conditioners, ensuring precision and reliability for everyday life

Why Choose the GUETNEU LCD Digital Display Relay

Choose the LCD Digital Display Relay, Dual Time Control Delayer With Plug-in Terminal Socket, 14-Pin 12 VDC 4PDT Delay Relay (H3Y-4) for the combination that timers buyers actually need: versatile build, high-quality material, and everyday convenience.

Best For

The LCD Digital Display Relay, Dual Time Control Delayer With Plug-in Terminal Socket, 14-Pin 12 VDC 4PDT Delay Relay (H3Y-4) is best suited for household use, where its versatile build supports practical use.

Quick Summary

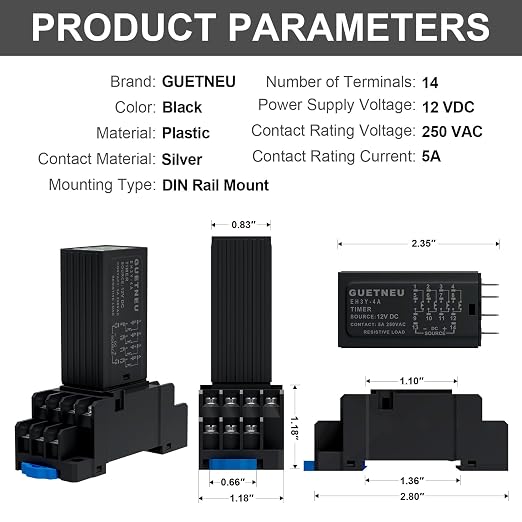

The GUETNEU LCD Digital Display Relay is a Timers product by GUETNEU. Connector Type: Plug-In. Contact Material: Silver. Mounting Type: DIN Rail Mount. Brand: GUETNEU. Operation Mode: Manual. Price: $26.98.

Product Specifications
