Multifunction Time Relay, 16A Delay ON Off GRT8-M1 AC DC 12-240V

Product Overview

The Multifunction Time Relay, 16A Delay ON Off GRT8-M1 AC DC 12-240V with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days bridges durable design and long-term value, well-suited for gift giving. Crafted from Copper. Notable features include grt8-m1 multifunctional and multifunctional timer, contributing to its quality character.

Key Features

• GRT8-M1 multifunctional timer relay, can preset machine start or stop time, 5 time functions controlled by power supply voltage, 4 time functions controlled by control input, 1 latching relay function. It has a wide delay setting range from 0.1 seconds to 10 days, wide working voltage AC230V (50-60Hz), rated current of 16A. Output contact: 1SPDT (1NO1NC). This 12V time delay relay can be used in industrial equipment, lighting manufacturing, heating element control, motors to accurately control the delay time of changing lighting, heating, motors, machines, etc

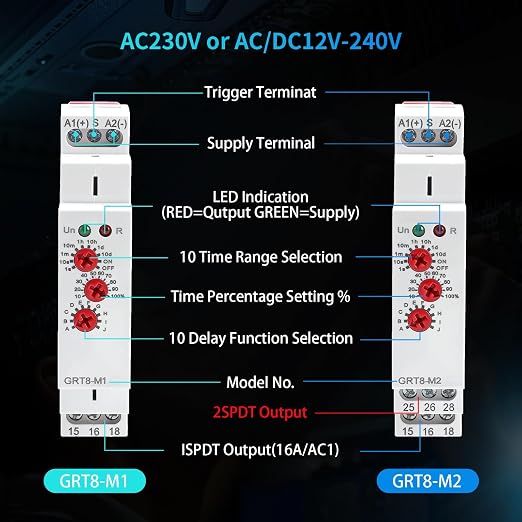

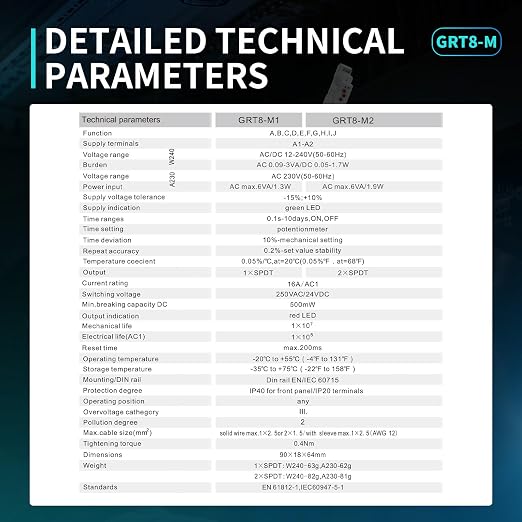

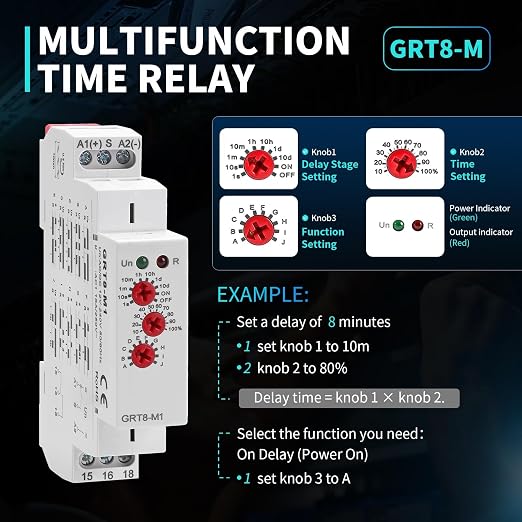

• grt8 m1 ac dc 12-240v the working status of the delay relay is indicated by the LED : the green LED is always on (power on), the green LED is off (power abnormality); the red LED flashes (indicating the start of work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicating the stop of work). Refer to the detailed technical parameters for further customization and optimal performance: a. Select the desired function, e.g., A (Power-On Delay). b. Set the required delay time, e.g., 30 minutes. c. Adjust the time range knob to 1h. d. Turn the percentage knob to 50% for precise control. Please check the instructions and videos

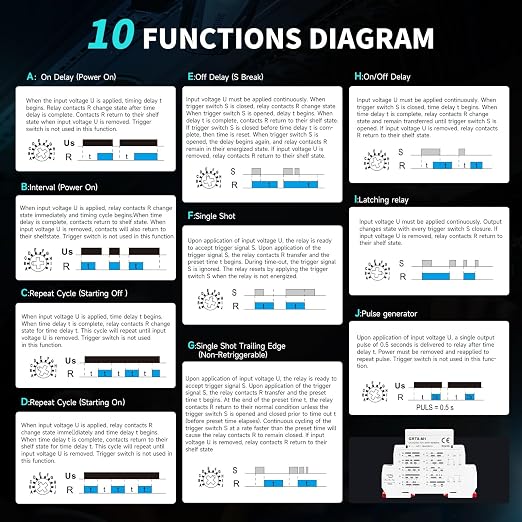

• Model of GRT8 Time Relay: 1. GRT8-A: Delay ON time relay; GRT8-B: Delay Off time relay; GRT8-S：Asymmetric Cycle Timer Relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT8-M: Multi functional time relay, covering GRT8 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON），and function E as shown in the figure, F,G,H,I,J

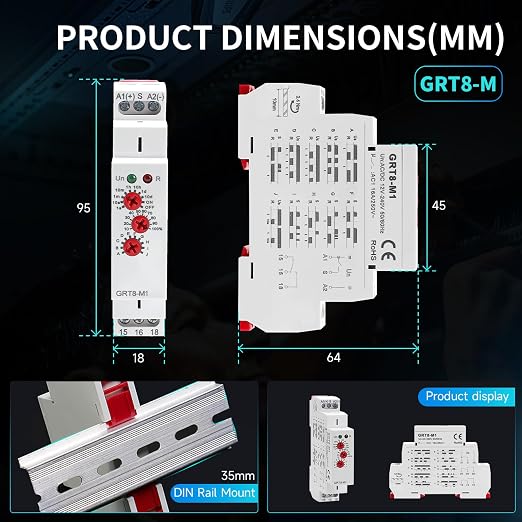

• Designed time relay: The GRT8 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.7 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
• We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time

Why Choose the IGEYAPA Multifunction Time Relay

The Multifunction Time Relay, 16A Delay ON Off GRT8-M1 AC DC 12-240V with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days stands out for its practical build and reliable performance, complemented by grt8-m1 multifunctional. Together these qualities make it a dependable choice in the electromechanical relays category.

Best For

For users centered on gift giving, the Multifunction Time Relay, 16A Delay ON Off GRT8-M1 AC DC 12-240V with 10 Relay Timer Control Delay Function Mode DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days delivers long-term value through practical construction.

Quick Summary

The IGEYAPA Multifunction Time Relay is a Electromechanical Relays product by IGEYAPA. Connector Type: Screw. Contact Material: Copper. Contact Type: Normally Open. Current Rating: 16 Amps. Mounting Type: DIN Rail Mount. Price: $48.58.

Product Specifications
