Product Overview
Few products in this space combine durable build with reliable performance as cleanly as the Mxfans Electric Synchronous Gear Motor 12V AC 5-6RPM CW/CCW 4W Oscillating Fan Motor for daily routines. Key specs include brand: Mxfans, model name: gear, speed: 6 RPM. Notable features include product parameters and parameters rated, contributing to its reliable character.
Key Features

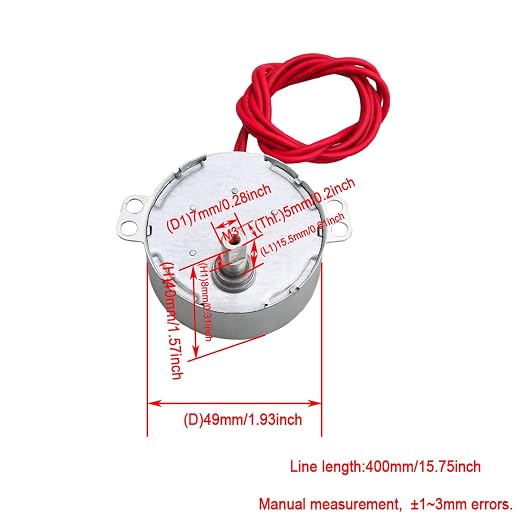

- Product Parameters: Rated voltage: AC 12V; Speed: 5-6rpm; Torque: 4KGF.CM; Current: 20-100mA; Power: less than 4W; Shaft length: 15.5mm; Shaft diameter: 7mm; Upper thread: M3; Flat shaft thickness: 5mm; Flat shaft part height: 8mm; Product diameter: 49mm/1.92"; Product height: 40mm/1.57"
- Scope of Application: It is mainly used for electric fans, heaters, fan heaters, various display stands, handicrafts, lamps and lanterns and other appliances, as well as the wind guide motor of various air conditioners and the turntable motor of microwave ovens and many more.
- Great Performance: AC motor has low power consumption and torque, low noise, small size, light weight, solid and durable.
- Rotation Direction: non-directional (CCW/CW will automatically reverse when encountering large resistance)
- 1. The slower the speed, the greater the torque. 2. The synchronous motor is a non-directional synchronous motor. When the load reaches the rated torque of the motor, it will automatically reverse. 3. Do not use external force to rotate the motor shaft. 4. Use within the specified voltage and power range of the product.
- Shaft length: 15.5mm
- Shaft diameter: 7mm
- Upper hole internal thread: M3 Flat shaft thickness 5mm
- The flat shaft part is 8mm high Product diameter 49mm Product height 40mm
- Upper hole internal thread: M3; flat shaft thickness 5mm; flat shaft part height 8mm
Why Choose the Mxfans Electric Synchronous Gear Motor 12V AC 5-6RPM CW/CCW 4W Oscillating Fan Motor
Buyers gravitate toward the Mxfans Electric Synchronous Gear Motor 12V AC 5-6RPM CW/CCW 4W Oscillating Fan Motor for the practical reasons: thoughtfully designed construction, product parameters, and the thoughtful design that results.
Best For
The Mxfans Electric Synchronous Gear Motor 12V AC 5-6RPM CW/CCW 4W Oscillating Fan Motor performs reliably in daily routines, where its thoughtfully designed design supports reliable performance.
Quick Summary
The Mxfans Electric Synchronous Gear Motor 12V AC 5-6RPM CW/CCW 4W Oscillating Fan Motor is a Fan Motors product by Mxfans. Brand: Mxfans. Model Name: gear. Speed: 6 RPM. Voltage: 12 Volts. Horsepower: 4 Watts. Price: $16.18.
Product Specifications
| Specification | Details |
|---|---|
| Brand | Mxfans |
| Model Name | gear |
| Speed | 6 RPM |
| Voltage | 12 Volts |
| Horsepower | 4 Watts |
