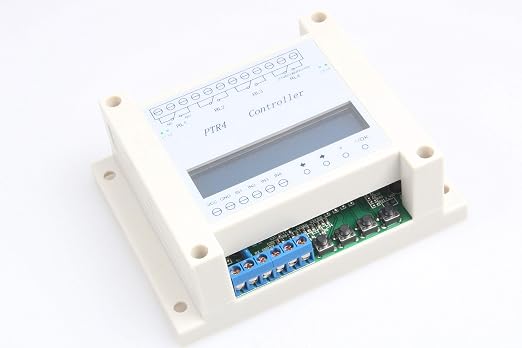

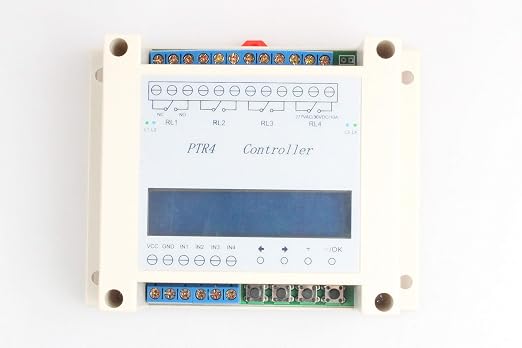

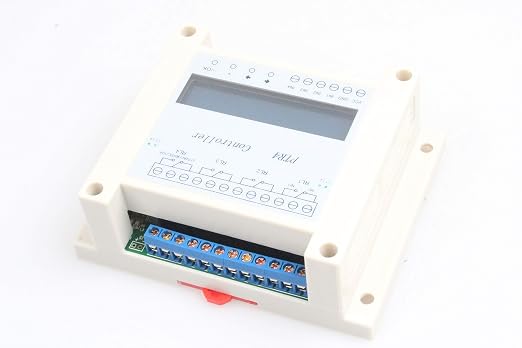

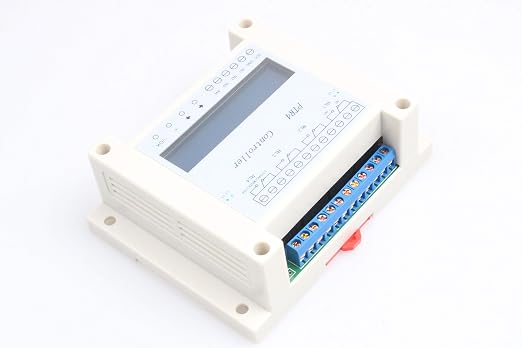

Product Overview
For those navigating common scenarios, the NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation offers a easy-to-use option backed by satisfying experience. Crafted from Silver. Notable features include ptr4-sp controller and set 99, contributing to its versatile character.
Key Features
- The PTR4-SP controller can be set 99 groups time (steps), each step the relay switch state can be set switch “ON/OFF” (close or open) , use external input voltage signal or switch it can achieve many functions. The controller can be used to control four solenoid valve - linkage, sequence control as PLC, etc.

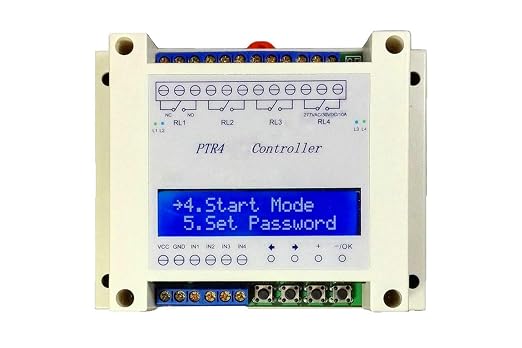

- Industrial LCD displays, set by buttons, easy to use, has reset function. High-performance microcontrollers, industrial-grade reliability, high process stability, low power, reverse power protection function, avoiding surge current shock.
- Four relays, each group of relays has common and normally opened, normally closed contacts, 4 sets of conversion; 99 groups time, each timer range: 0.1 seconds ~ 9999 minutes adjustable, the total number of Loops is adjustable from 0 to 9999 ( “0” means run loops all the time ) ;
- Each step can be set to cyclic jump to run forward 0-999 times, 20 layer nesting loops support ; The external input high level and low level signals, achieve trigger function, wait input to run, jump to another step ,stop running functions; User can set the password, to prevent others to change the setting parameters;
- Timing Range : 0.1seconds ~ 9999 minutes can be set, cycles 0 ~ 9999 times,
Why Choose the NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation
Among comparable hubs & controllers products, the NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation differentiates through value-driven build and ptr4-sp controller, both pointing toward practical use.
Best For
The NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation pairs naturally with common scenarios situations, offering satisfying experience when it counts.
Quick Summary
The NOYITO 4-Channel Programmable Time Relay Controller 99-Step Multi-Channel Timing Trigger Solenoid Valve Linkage Control LCD Display Optocoupler Isolation is a Hubs & Controllers product by NOYITO. Connector Type: Screw. Contact Material: Silver. Contact Type: Normally Closed. Current Rating: 10 Amps. Mounting Type: Surface Mount. Price: $66.56.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Closed |
| Current Rating | 10 Amps |
| Mounting Type | Surface Mount |
