Product Overview
Offering practical use in a versatile package, the PMS5003 Digital Particle Concentration Laser Sensor/High Precision Laser Sensor to Detect Air Quality Suitable for Smart Home fits well into household use. measuring ±1%. Notable features include digital universal and universal particle, contributing to its well-made character.
Key Features
- ♥PMS5003 is a digital universal particle concentration sensor based on the principle of laser scattering, which can continuously collect and calculate the number of suspended particles of different particle sizes in the air per unit volume, that is, the particle concentration distribution, and then convert it into mass concentration, and use the universal Digital interface form output.

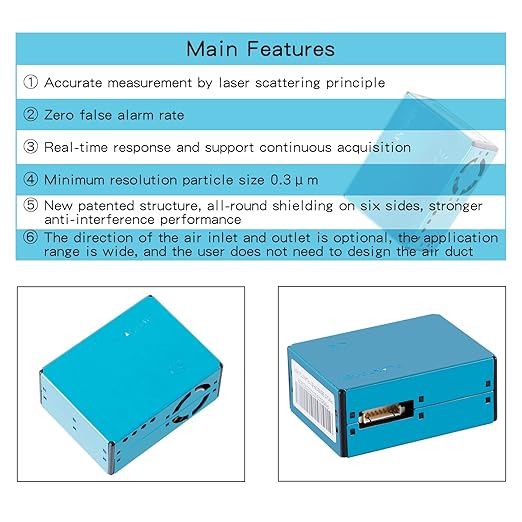

- ♥ Main features★Accurate measurement by laser scattering principle★Zero false alarm rate★Real-time response and support continuous acquisition★Minimum resolution particle size 0.3μm★New patented structure, all-round shielding on six sides, stronger anti-interference performance★ The direction of the air inlet and outlet is optional, the application range is wide, and the user does not need to design the air duct

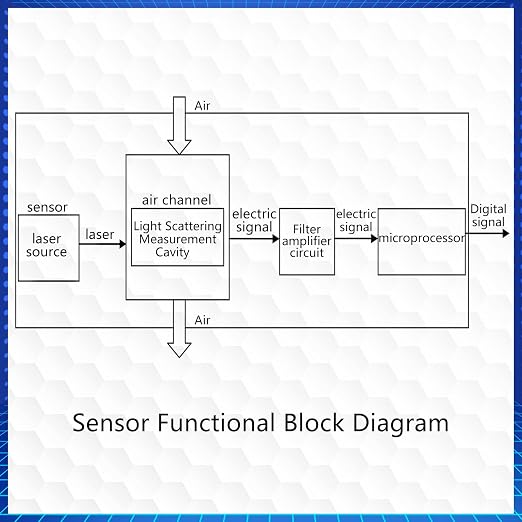

- ♥ Working principle:PMS5003 sensor adopts the principle of laser scattering. In this way, the scattering of light is generated by laser irradiation on suspended particles in the air, and the scattering light is collected at a certain Angle, and the curve of the scattering light intensity changes with the time is obtained. Then the microprocessor uses the algorithm based on MIE theory to get the equivalent particle size and the number of particles with different particle sizes in unit volume.
- ♥Sensor Specifications:✔Particle measurement range: 0.3~1.0; 1.0~2.5; 2.5~10 microns (μm)✔Particulate mass concentration resolution: 1 μg/m3✔Single response time: <1 second (s)✔Comprehensive response time: ≤10 seconds (s)✔DC supply voltage: Type: 5.0 Min: 4.5 Max: 5.5 Volts (V)✔Working current: ≤100 mA (mA)✔Standby current: ≤200 microamps (μA)✔Operating temperature range: -10~+60 degrees Celsius (°C)✔Working humidity range: 0~99%✔Storage temperature range: -40~+80 degrees Celsius (°C)

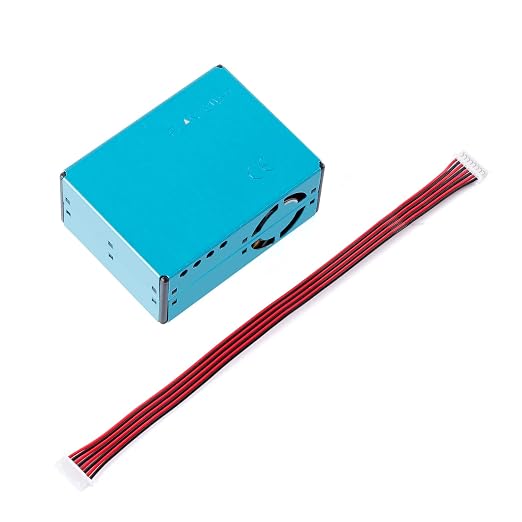

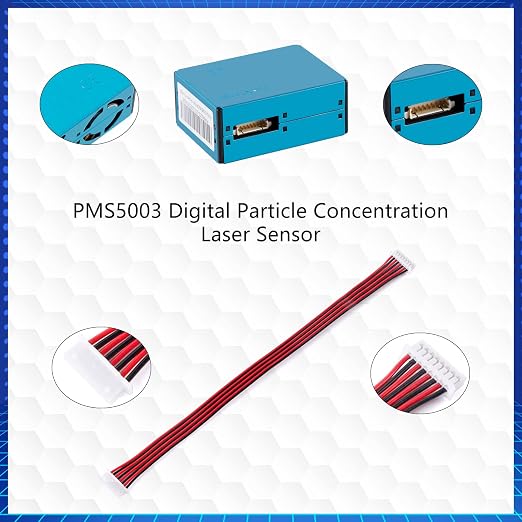

- The package includes 1pcs PMS5003 Digital Particle Concentration Laser Sensor
Why Choose the ECBuying PMS5003 Digital Particle Concentration Laser Sensor/High Precision Laser Sensor to Detect Air Quality Suitable for Smart Home
For buyers prioritizing everyday convenience, the PMS5003 Digital Particle Concentration Laser Sensor/High Precision Laser Sensor to Detect Air Quality Suitable for Smart Home offers user-tested construction paired with digital universal. Few indoor air quality meters products combine these elements as effectively.
Best For
The PMS5003 Digital Particle Concentration Laser Sensor/High Precision Laser Sensor to Detect Air Quality Suitable for Smart Home fits household use scenarios well, providing practical use and user-tested reliability.
Quick Summary
The ECBuying PMS5003 Digital Particle Concentration Laser Sensor/High Precision Laser Sensor to Detect Air Quality Suitable for Smart Home is a Indoor Air Quality Meters product by ECBuying. Brand: EC Buying. Style: Modern. Maximum Supply Voltage: 5.5 Volts. Measurement Accuracy: ±1%. Measuring Range: 0.3~1.0 μm, 1.0~2.5 μm, 2.5~10 μm. Price: $37.78.
Product Specifications
| Specification | Details |
|---|---|
| Brand | EC Buying |
| Style | Modern |
| Maximum Supply Voltage | 5.5 Volts |
| Measurement Accuracy | ±1% |
| Measuring Range | 0.3~1.0 μm, 1.0~2.5 μm, 2.5~10 μm |
